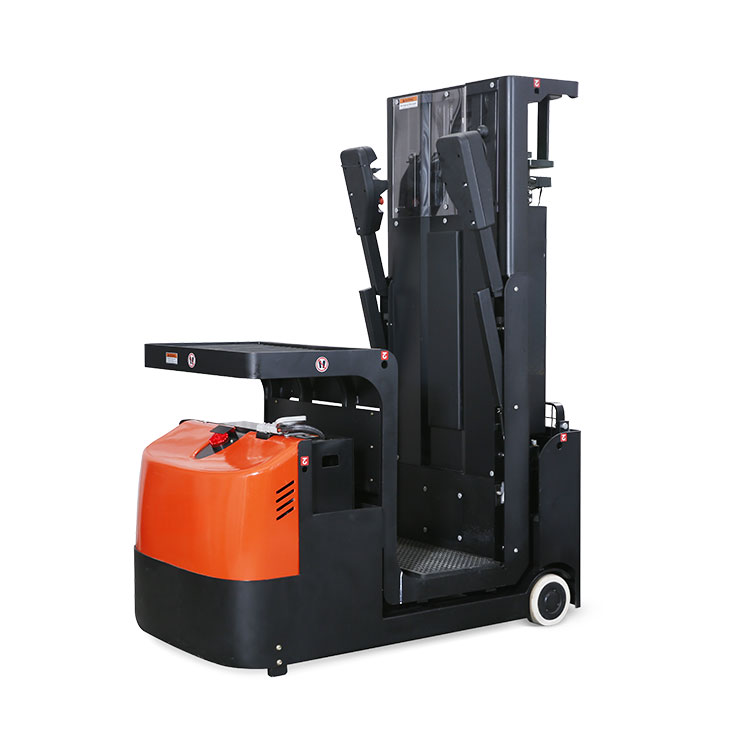

AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
  • AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker
Electric Order Picker

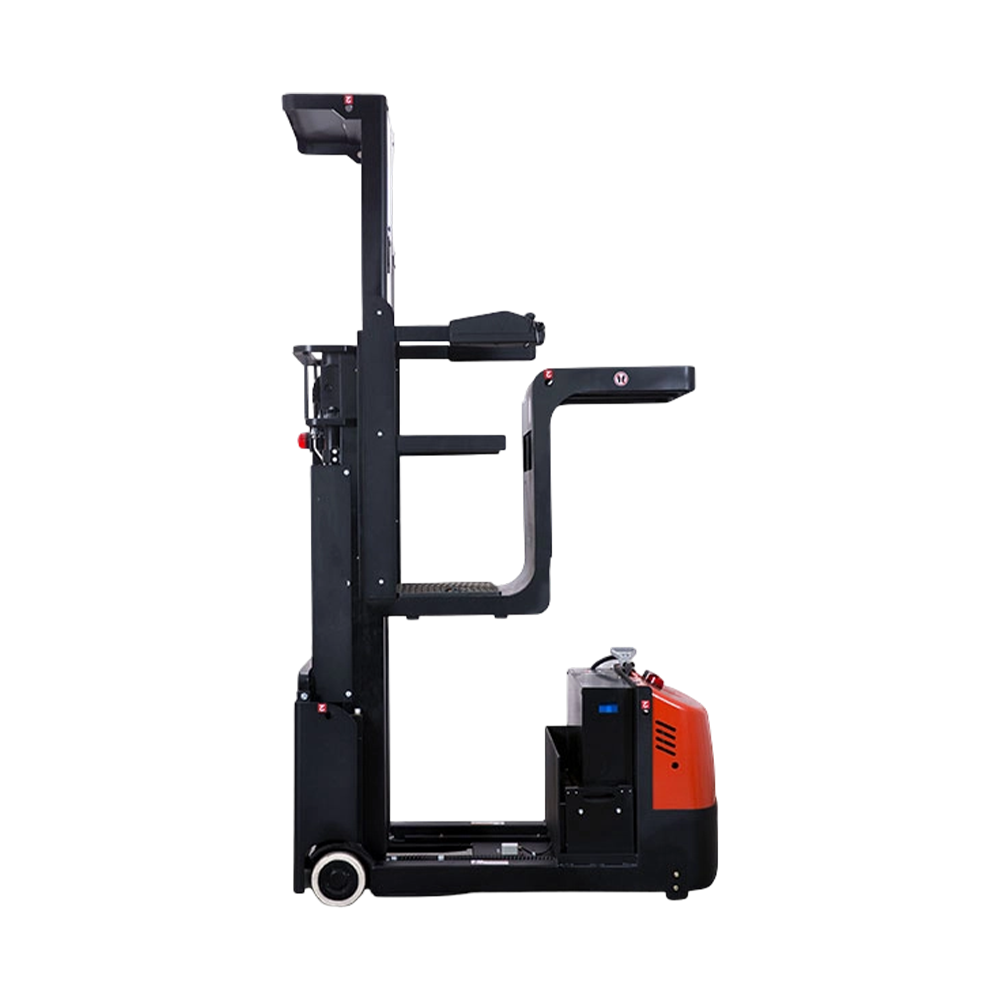

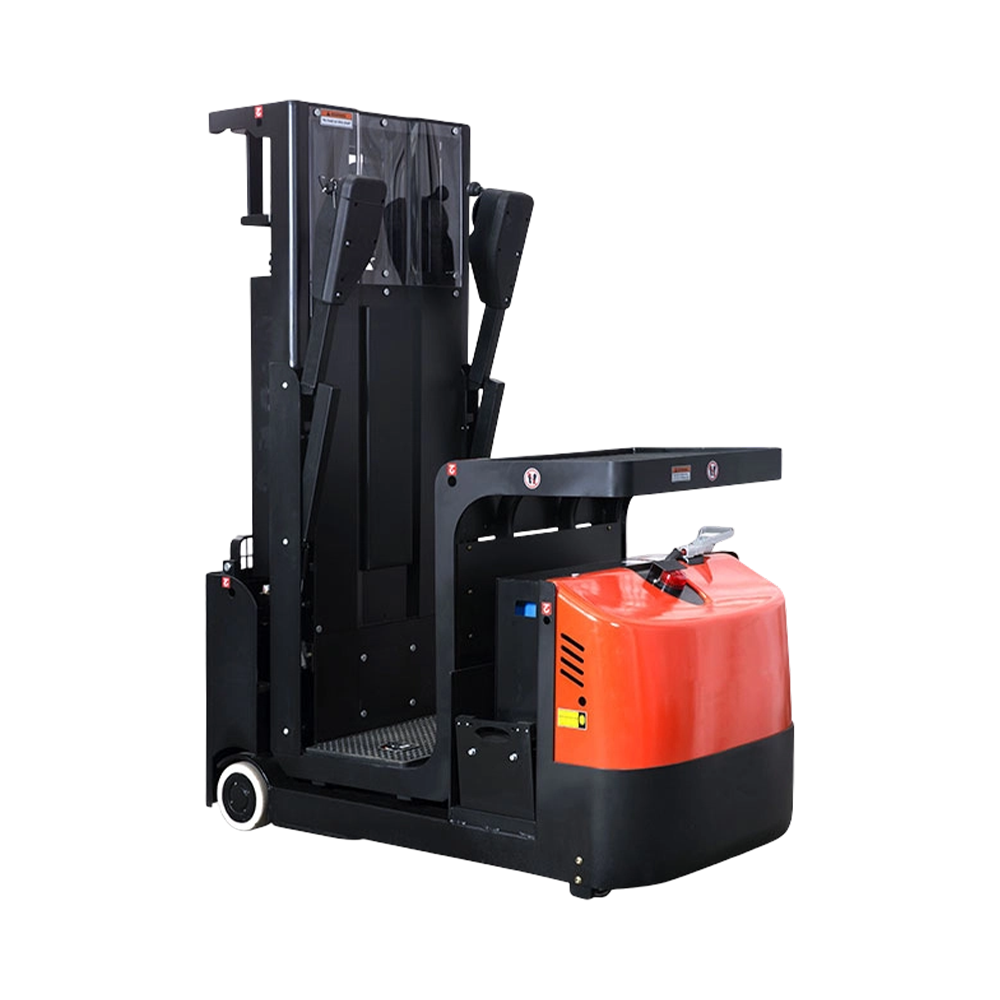

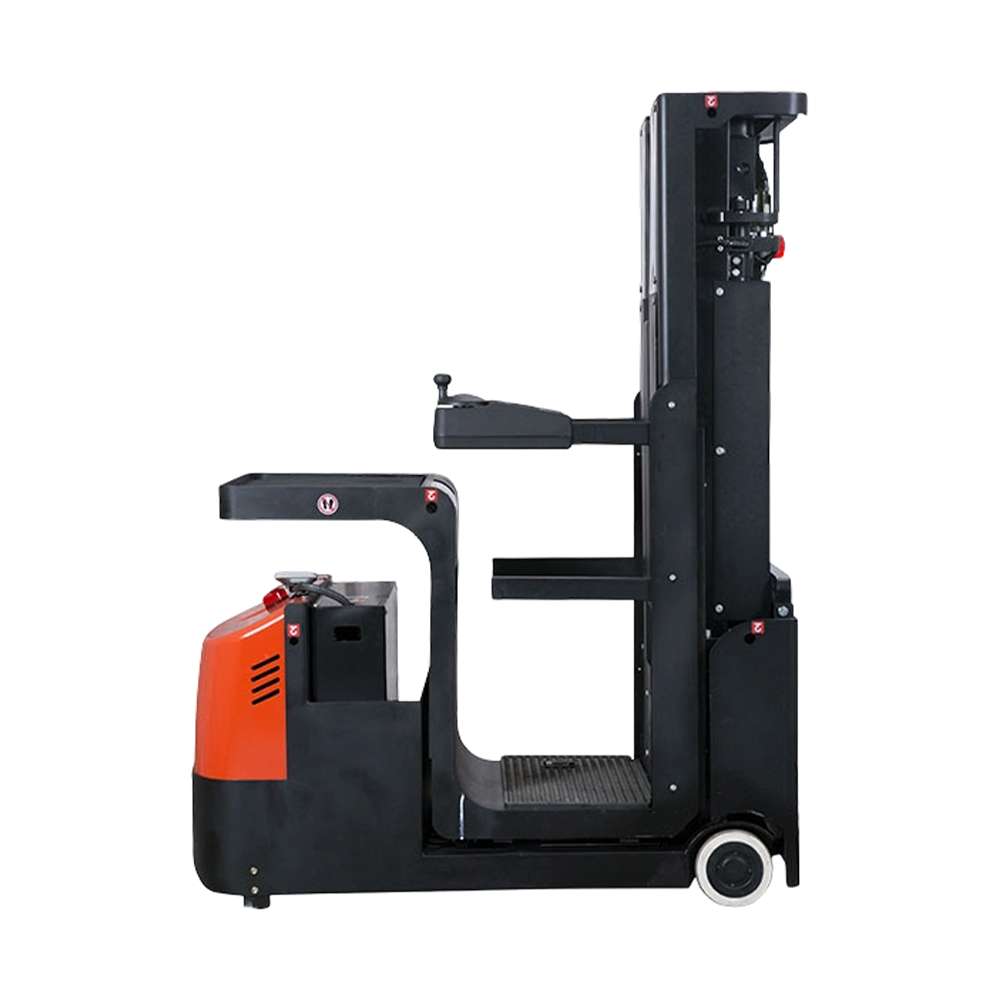

AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker

Product Description

Product name



Electric Order Picker

Drive



Electric

Operator type



Order-picker

Load capacity

KG

227/137/136

Wheelbase

MM

1150

Service weight

KG

1160

Axle loading, laden front/rear

KG

680/980

Axle loading, unladen front/rear

KG

490/670

Tyre type



Polyurethane/Solid rubber

Turning radius

MM

1385

Travel speed, laden/unladen

km/h

5.5/5.5

Battery voltage/nominal capacity

V/Ah

24/224

Battery weight

KG

163

Type of drive control



AC

Steering design



Electronic

E-mail: forklift-05@aliyun.com
Shanghai HanDavos International Trading Co., Ltd. Product Highlights

1. Revolutionary Order Picking Operation Mode
AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker adopts an innovative operating system, bringing a revolutionary order picking mode. It greatly optimizes picking efficiency, movement logic and operation accuracy, helping operators complete high-intensity sorting tasks with less effort and higher precision.

2. Convenient Assembly, Disassembly, and Maintenance
AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker features a user-friendly modular design for easy assembly and disassembly. All key components are reasonably arranged and quickly accessible, making daily inspection, maintenance, and parts replacement extremely convenient, effectively reducing downtime and maintenance costs.

3. Ultra-Strong Body Structure for Stability and Safety
Built with an ultra-strong, heavy-duty frame and reinforced chassis, this AC Electromagnetic Warehouse forklift 0.5T Electric Order Picker delivers outstanding stability and safety. It maintains excellent balance during lifting, moving, and picking operations, effectively preventing rollover and shaking, fully ensuring operator safety and cargo stability in high-altitude order picking.

Shanghai HanDavos International Trading Co., Ltd. Product Features

1.High Performance & High Reliability
Equipped with an AC drive system that delivers strong power output, enabling more precise control and smoother operation.High-strength vertical gearbox ensures an ultra-long service life.
Low-noise and low-failure hydraulic station, with oil cylinders and pipelines having passed multiple rigorous tests, guarantees outstanding reliability of the hydraulic system.
Reliable waterproof connectors and electrical components from the renowned American brand AMP are adopted. All wires and cables are securely protected and fixed, greatly reducing the occurrence of electrical faults.

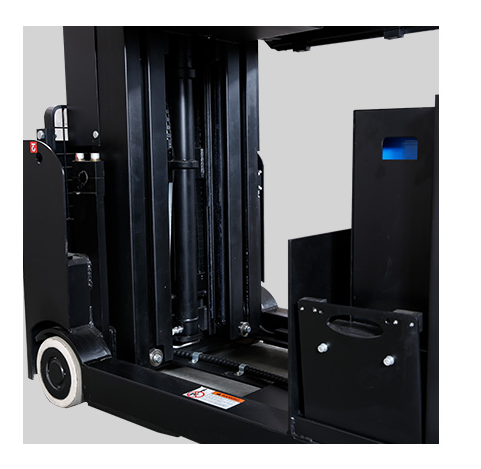

H-shaped channel steel mast delivers excellent bending resistance, effectively enhancing the overall strength of the mast structure.The ultra-rigid vehicle frame ensures exceptional structural reliability.

2.Enhanced Safety Features
The hydraulic system adopts an explosion-proof design. Even if the oil pipe bursts, the mast will not drop rapidly, greatly improving operation safety.
A foot-operated safety switch prevents misoperation during travel.
Releasing the travel switch activates automatic braking and reverse current braking, delivering safer driving.

An emergency power-off switch allows quick disconnection of all power in case of operation out of control, avoiding potential accidents.
The anti-slip braking function prevents the vehicle from sliding down when running out of control or driving on slopes.
Equipped with a continuous height-sensing control system, which gradually decelerates within preset intervals, with almost no noticeable change for the driver.
Dual-channel monitored electronic steering ensures safe and reliable performance.
The automatic corner deceleration function makes driving safer (electronic steering).

3.Easy Operation

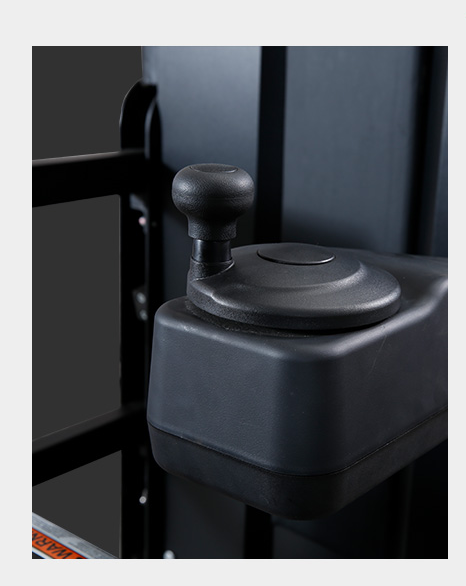

The integrated control mode with full protection is designed based on full ergonomic considerations.
The driving position is equipped with a backrest for more comfortable operation.
A spacious driving space and an open view of the racks significantly improve driving comfort.

The 20MM thick shock-absorbing foot pad and flush-mounted foot switch allow the operator to maintain a natural standing posture during driving.

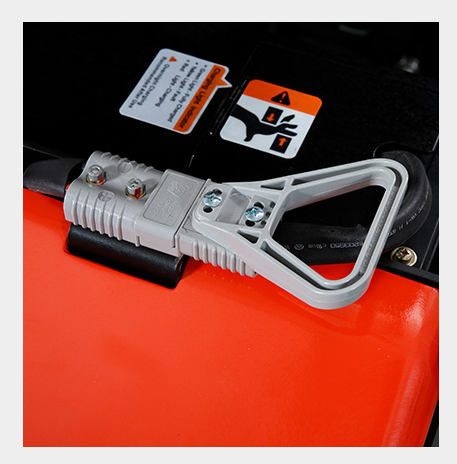

The side-pull battery box design enables easy battery replacement, supporting continuous operation.
Electronic steering provides lighter and more flexible control.

4. Easy Maintenance
The AC motor is maintenance-free.
Equipped with an hour meter and battery indicator, it reminds the operator to charge timely and protects the battery.
The machine body is easy to disassemble and assemble. By removing only 2 screws to take off the cover, inspection, maintenance and replacement of key components can be carried out conveniently.

The vertical motor layout allows direct and easy access for inspection and maintenance of the motor, brake and other parts, offering much better maintainability than horizontal motors.
The controller features a self-diagnosis system that displays fault codes via a handheld unit, making troubleshooting more efficient.
Automatic low-voltage protection effectively extends the service life of the battery.
