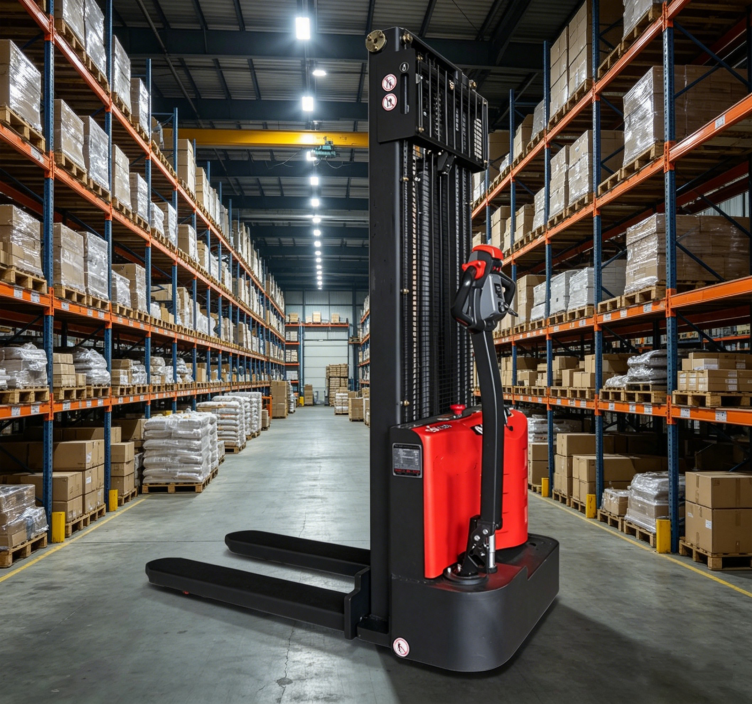

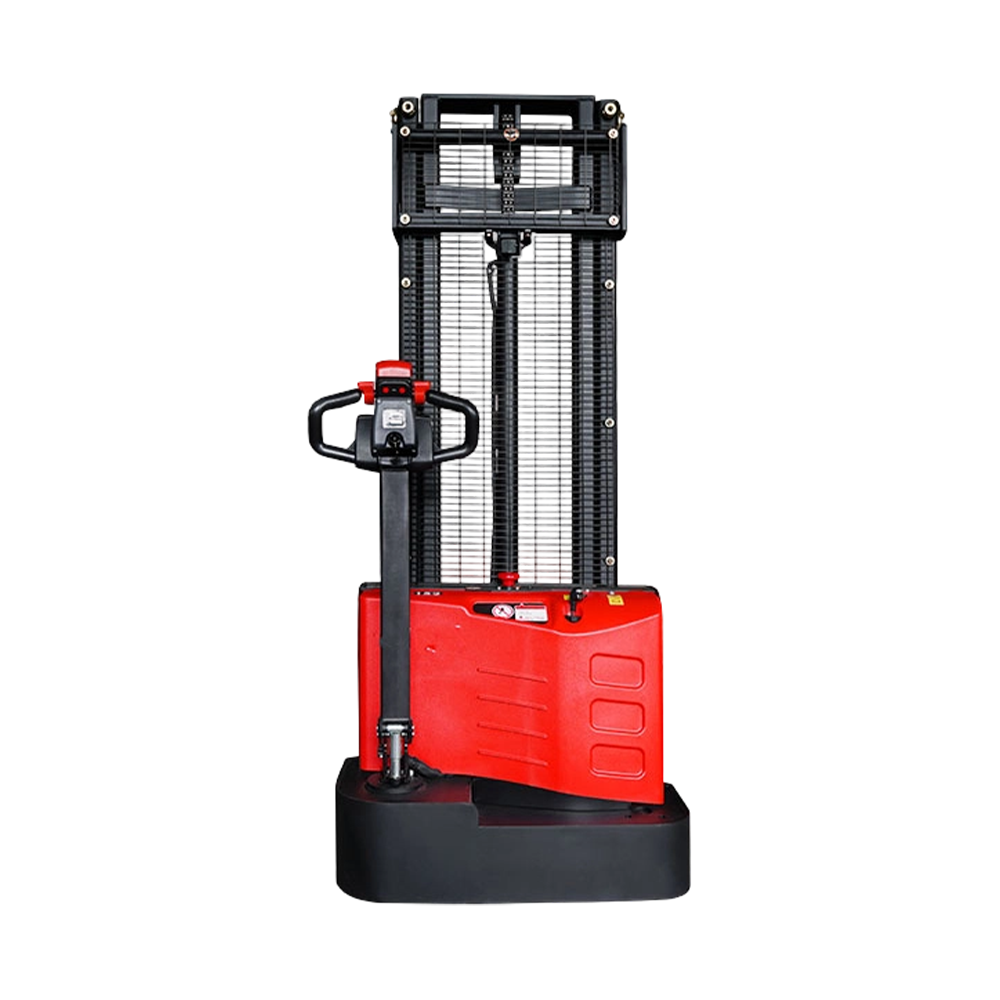

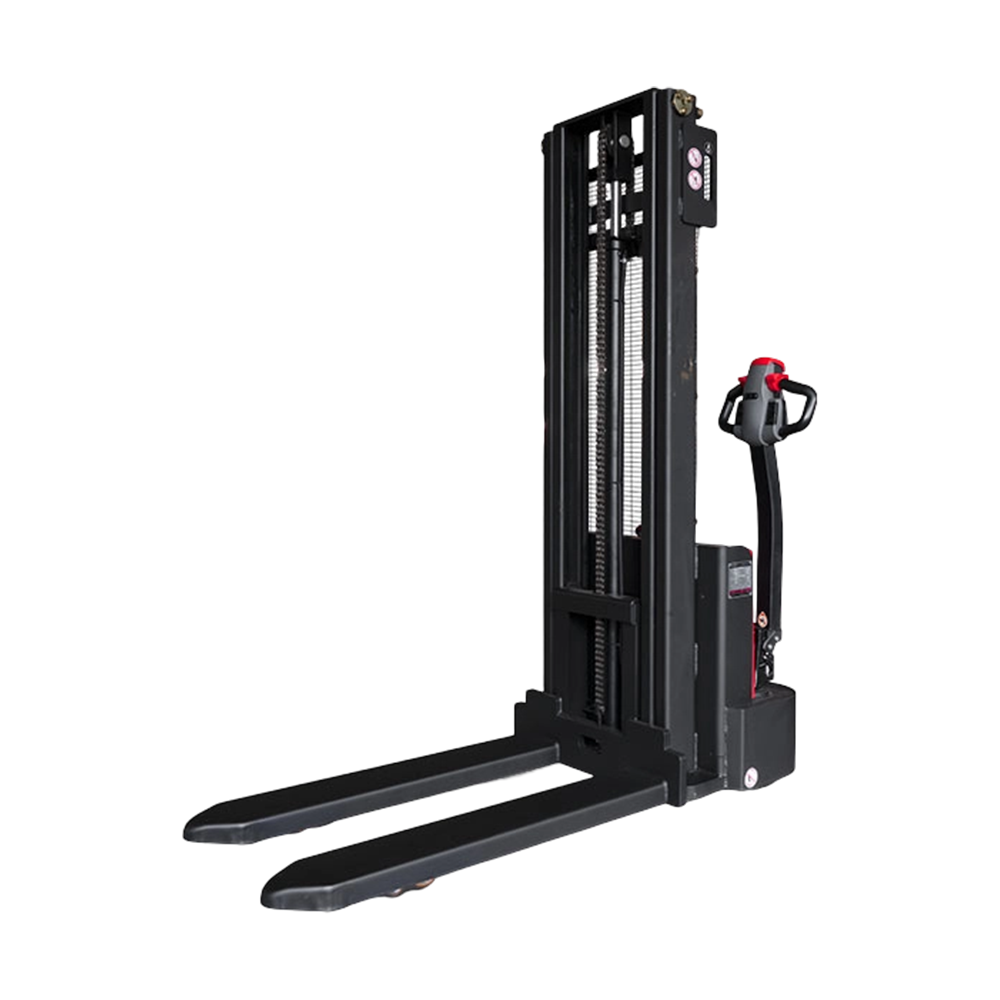

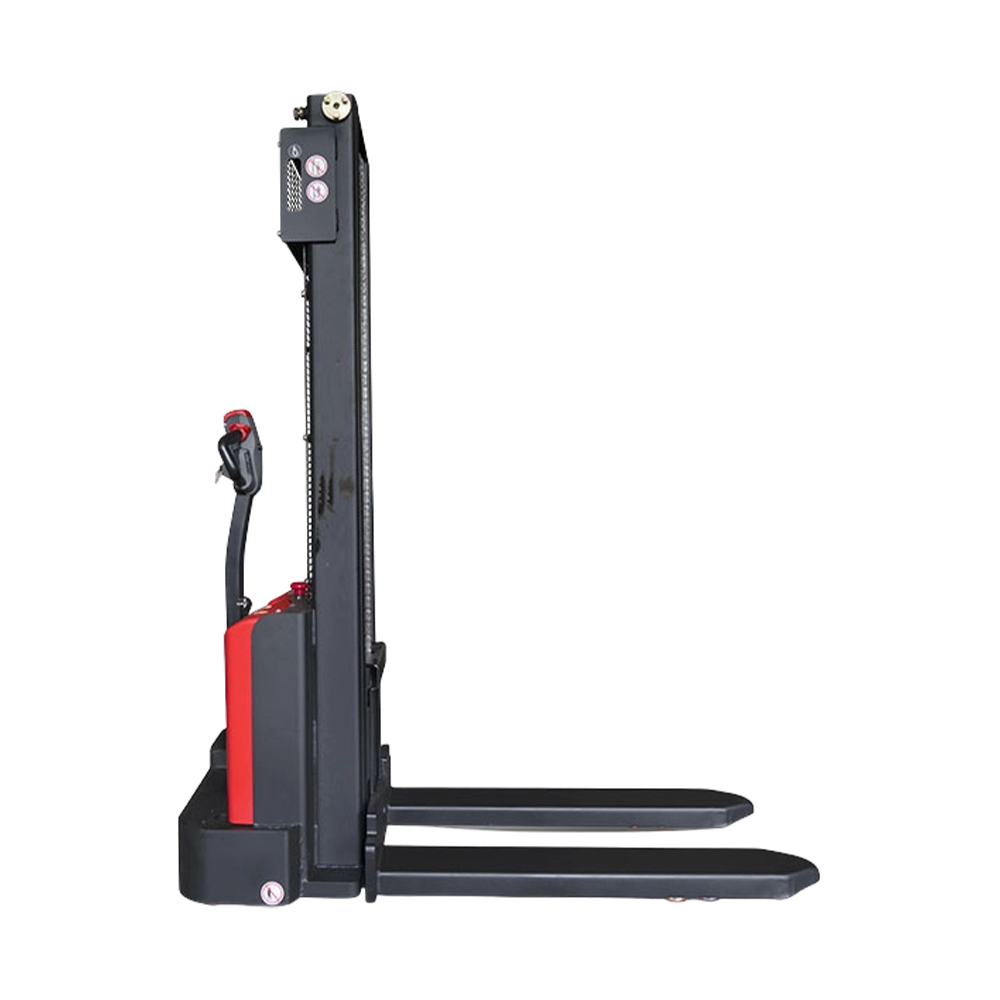

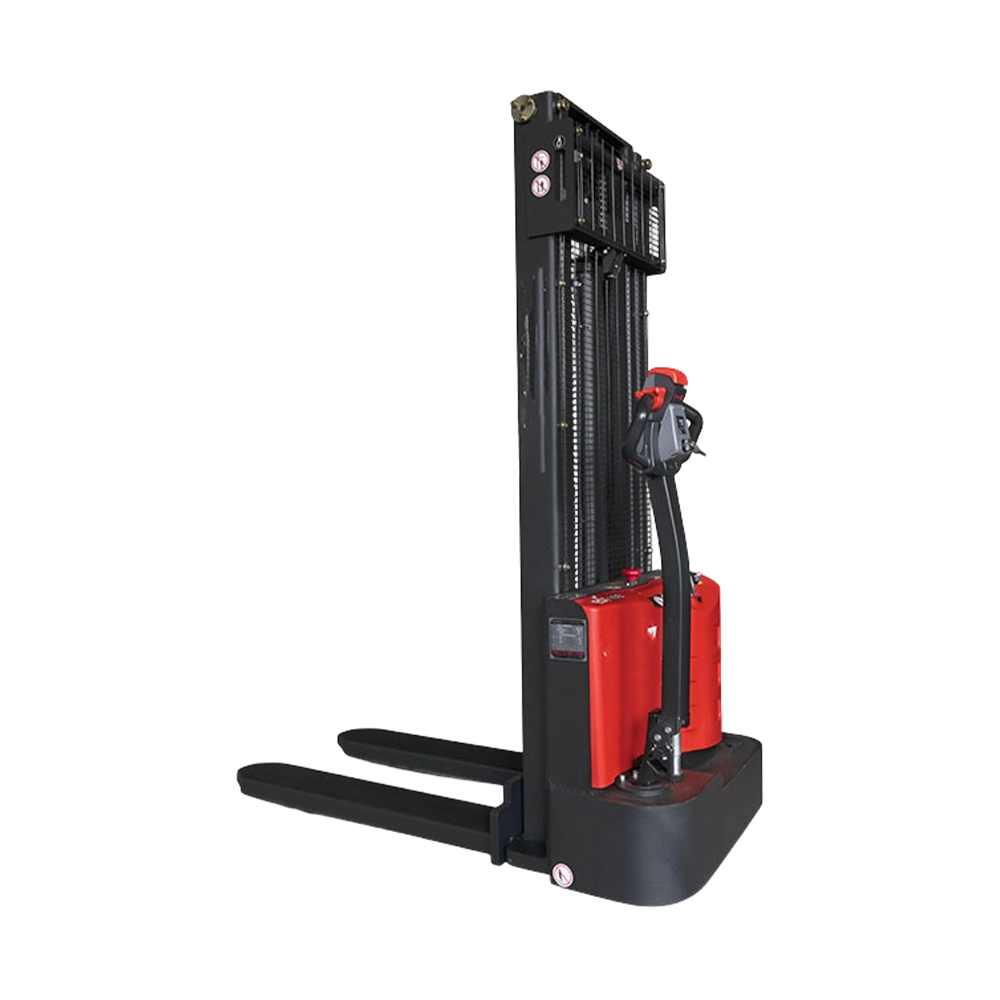

Warehouse Forklift 1.5 Ton Electric Stacker

Get brochure

Product Description

Product name		Electric Stacker
Drive		Electric
Operator type		Pedestrian
Load capacity	KG	1500
Load center distance	MM	500
Carrying length	MM	801
Wheelbase	MM	1204
Service weight	KG	510
Axle load, full load front/rear	KG	760/1250
Axle load, before/after no-load	KG	380/130
Tire type, drive wheel/carrier wheel		polyurethane
Drive unit type		DC
Steering type		mechanical

E-mail: forklift-05@aliyun.com

PREV： No previous articleNEXT： Warehouse Equipment 2 Ton Lithium-ion Battery Electric Stacker

Product Highlights

● The Warehouse Forklift 1.5 Ton Electric Stacker is built with comprehensive safety designs and strict quality controls, delivering reliable quality assurance for every operation.
● Featuring a compact and ingenious structure with fine workmanship, this Warehouse Forklift 1.5 Ton Electric Stacker offers outstanding durability and a sleek, practical design.
● Easy to operate, it allows smooth maneuvering in both narrow aisles and wider working spaces, making the Warehouse Forklift 1.5 Ton Electric Stacker ideal for all kinds of warehouse environments.
● Equipped with a high-performance drive system, it ensures stable and dependable quality, supporting consistent and efficient daily material handling tasks.

Product Features

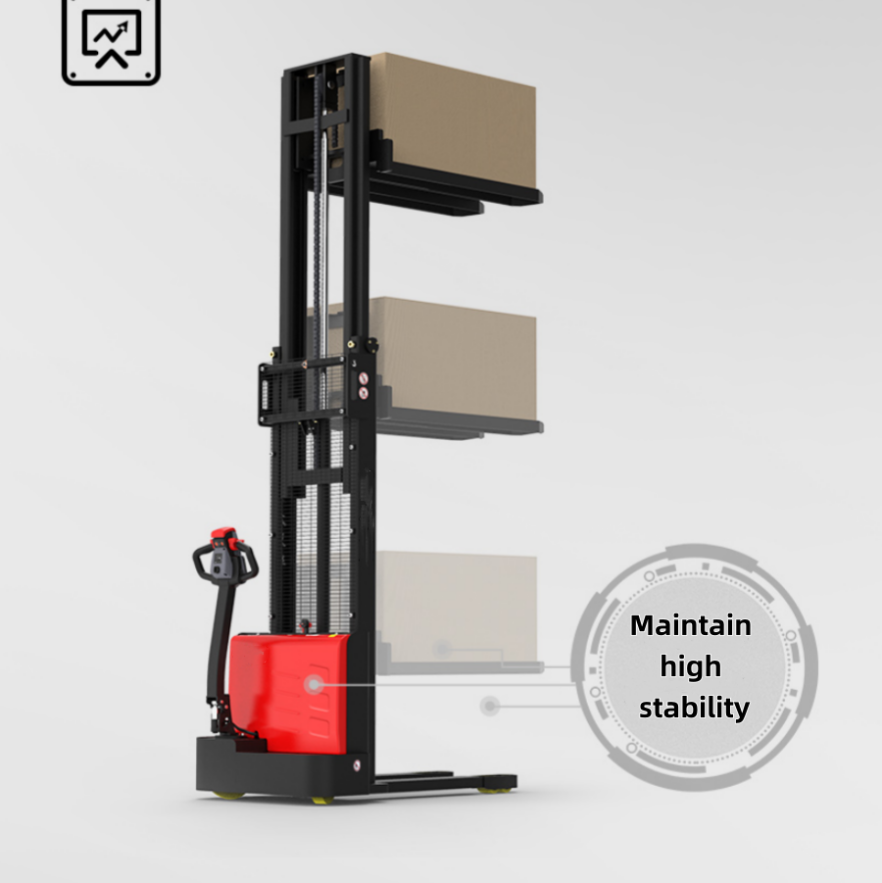

1. STABLE
Completely passed the national safety stability test standards GB/T26949.1 - 2012

2. POWERFUL

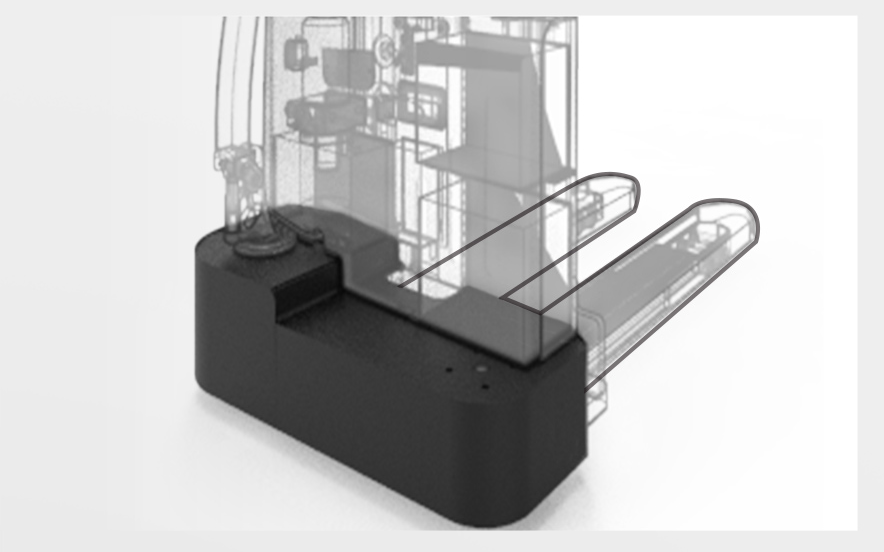

The specially designed high-strength chassis:
Through the integrated configuration of plates, beams and boxes, the heavy-load deformation of the chassis is significantly reduced.

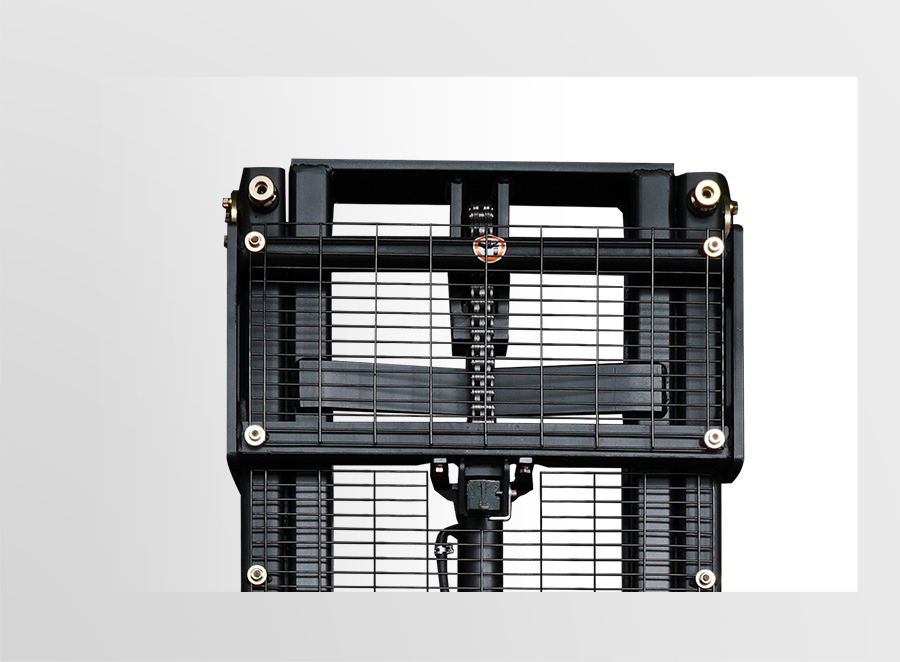

Special-designed crossbeam structure of the gantry: The key points of the door frame's strength were determined through finite element stability tests, and the frame was reinforced with a box structure, significantly enhancing the rigidity of the door frame.

3. CONVENIENT

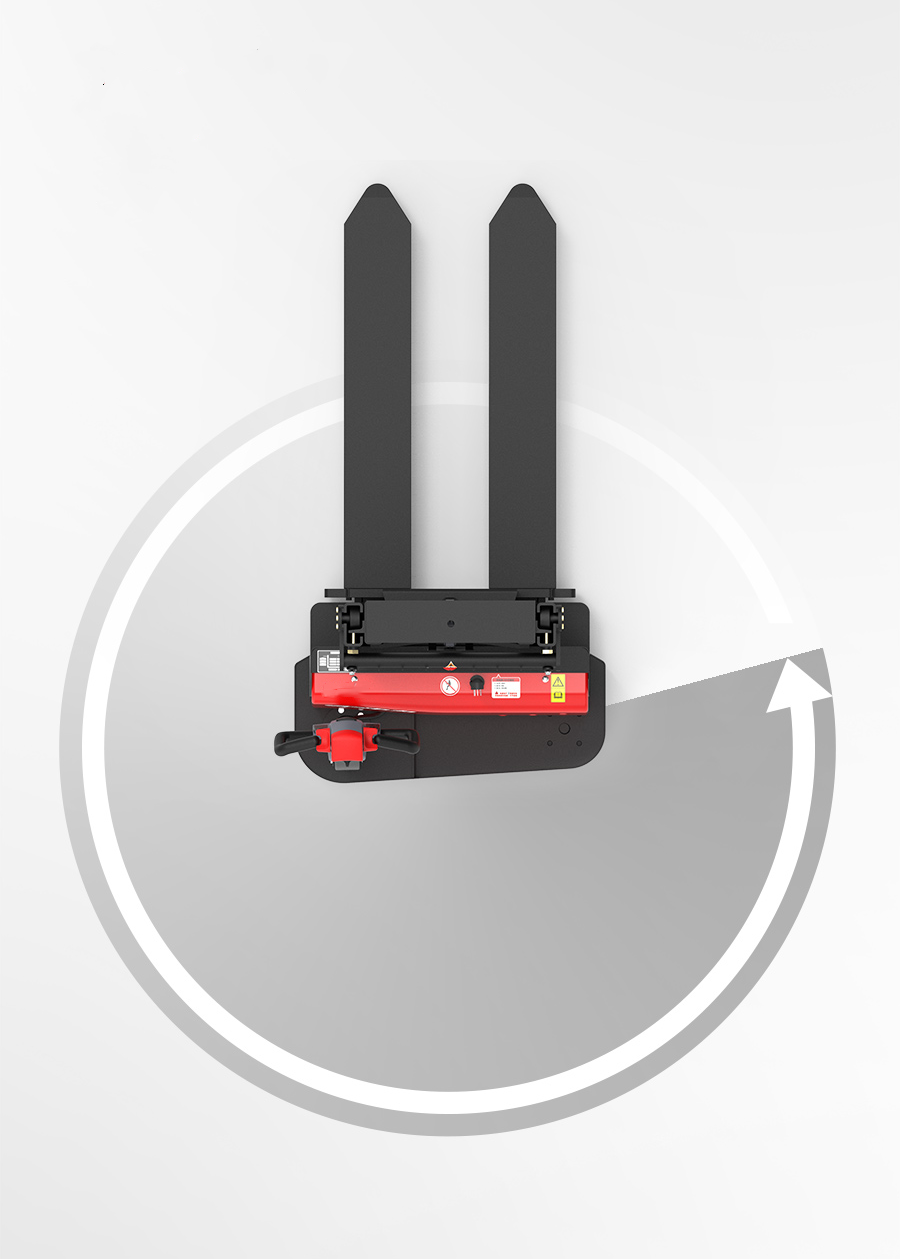

Easy to operate and capable of controlling a wider space

4. BOUTIQUE
Hard drive with strong performance and reliable quality


The main component requires an annual production of over 100,000 units.	Anti-torsion robot cable Imported waterproof connectors	Brake protection Independently designed
