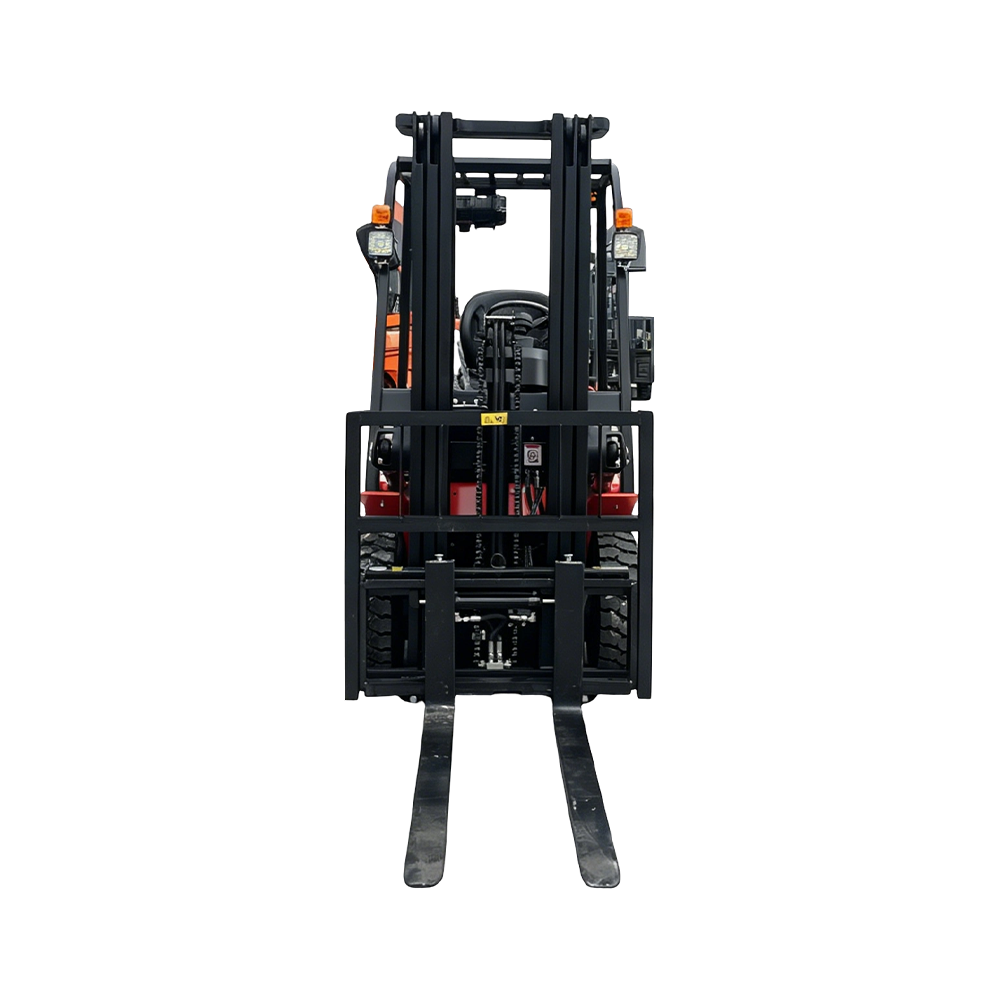

Internal combustion forklift 4-wheel diesel forklift

Get brochure

Product Description

Product name		Diesel Forklift
Model		CPCD15	CPCD25	CPCD30
Rated Lifting Load	KG	1500	2500	3000
Load Center Distance	MM	500	500	500
Free lifting Height	MM	100	150	160
Overall Length(With Fork/Without Fork)	MM	3180/2260	3646/2576	3752/2682
Width	MM	1090	1170	1225
Overhead Guard Height	MM	2050	2070	2090
Wheelbase	MM	1400	1600	1700
Minimum Ground Clearance	MM	110	110	135
Mast Tilt Angle(Front/Rear)	%	6/12	6/12	6/12
Tire No(Front )		6.5-10-10PR	7.00X12-12PR	28X9-15-14PR
Tire No(Rear)		5.00-8-10PR	6.00X9-10PR	6.5-10-10PR
Minimum Turning Radius(Outside)	MM	1950	2240	2400
Minimum Right Angle Aisle Width	MM	3630	3970	4260
Fork Size	MM	1070X100X45	1070X100X45	1220X125X45
Maxmum Working Speed(Full-Load/No Load)	km/h	14/15	17/19	18/19
Maxmum Speed Speed(Full-Load/No Load)	mm/s	500/480	530/550	440/480
Maximum Gradeability (Full-Load/No Load)	%	20/21	20/21	15/20
Total Weight	KG	2900	3680	4250
Type Of Power Shift		Hydraulic Transmission/Automatic	Hydraulic Transmission/Automatic	Hydraulic Transmission/Automatic

E-mail: forklift-05@aliyun.com

PREV： No previous articleNEXT： Standard Height 3m Inflatable tire 2.5 ton Diesel Forklift

Product Highlights

1. Versatile Tonnage & Scenario Compatibility
Our Internal combustion forklift 4-wheel diesel forklift series is available in 1.5-ton, 2.5-ton, and 3-ton rated capacities, perfectly matching material handling and stacking tasks in warehouses, factories, ports, and logistics parks.The standard 500mm load center ensures stable gravity distribution, preventing tilting during heavy-load handling and significantly enhancing operation safety.

2. High-Efficiency Power & Hydraulic System
The 4-wheel diesel forklift adopts a reliable hydraulic automatic transmission, delivering smooth power transfer with no shock during starting and shifting, effectively reducing operator fatigue.The travel speed reaches up to 19 km/h (no-load) and maintains stable performance under full load, enabling fast in-plant material turnover.The responsive hydraulic system ensures smooth lifting, lowering, and tilting movements, minimizing cargo shaking and damage risks.

3. Compact Structure & Excellent Maneuverability
With a minimum turning radius as low as 1950mm and a narrow body width, our Internal combustion forklift 4-wheel diesel forklift operates flexibly even in high-density rack warehouses and narrow work aisles.The 110-135mm ground clearance balances passability and stability, adapting well to uneven factory floors and outdoor working conditions.

4. Enhanced Safety & Stability for Reliable Heavy-Duty Operation
The mast tilt angle reaches 6° forward / 12° backward, providing a wide adjustment range for pallet picking and stacking across different scenarios.
Gradeability up to 21% (CPCD15/25, no-load) ensures reliable climbing performance on ramps and uneven terrain.
Robust frame design with a total weight of 2900-4250kg provides excellent structural rigidity, preventing rollover and ensuring operator safety during high-altitude stacking.

5. Durable & Low-Maintenance Design for Long Service Life
Heavy-duty tires (from 6.5-10 to 28x9-15) with high PR ratings deliver strong wear resistance and load-bearing capacity, suitable for long-term intensive use.
The overhead guard height of 2050-2090mm complies with safety standards, protecting the operator from falling objects.
Standard fork size (1070x100x45mm or 1220x125x45mm) ensures compatibility with most standard pallets, maximizing versatility.
