LED Indicator Light Forklift Battery Charger

Get brochure

Product Description

E-mail: forklift-05@aliyun.com

PREV： No previous articleNEXT： No next article

Product Highlights

1. Wide Compatibility & High Adaptability
Suitable for lead-acid batteries and lithium batteries of various forklifts, with stable output and perfect matching with different battery capacities.

2. Intelligent Charging Control
Adopts intelligent chip control with automatic identification of battery status, realizing multi-stage charging, overcharge protection, and full automatic stop.

3. High Charging Efficiency & Energy Saving
High conversion efficiency reduces power loss, shortens charging time, and effectively lowers operating cost.

4. Multiple Safety Protections
Built-in full protection functions including over-voltage, over-current, over-temperature, short-circuit, reverse connection and anti-leakage protection, ensuring safe charging.

5. Stable & Durable Performance
High-quality electronic components and robust housing design enable long-term stable operation, strong anti-interference and long service life.

6. Good Heat Dissipation
Optimized heat dissipation structure and fan cooling system reduce heat accumulation, supporting long-time continuous charging.

7. Easy Operation & Maintenance-Free
Simple plug-and-play design, clear indicator lights for working status, basically maintenance-free, convenient for daily use.

8. Waterproof & Dustproof (Optional)
With certain waterproof and dustproof grade, it can work reliably in harsh factory and outdoor environments.

Product Features

Product Model	Input Voltage (V)	Input Current (A)	Battery cells	Battery Voltage (V)	Output Current (A)	Input Power (KW)
AODS-S/E-D-48V/40A	380	4.6	24	48	40	3
AODS-S/E-D-48V/50A	380	5.7	24	48	50	3.8
AODS-S/E-D-48V/60A	380	6.8	24	48	60	4.5
AODS-S/E-D-48V/70A	380	8	24	48	70	5.3
AODS-S/E-D-48V/80A	380	9.1	24	48	80	6
AODS-S/E-D-48V/90A	380	10.3	24	48	90	6.8
AODS-S/E-D-48V/100A	380	11.4	24	48	100	7.5
AODS-S/E-D-48V/110A	380	12.5	24	48	110	8.3
AODS-S/E-D-48V/120A	380	13.7	24	48	120	9
AODS-S/E-D-48V/150A	380	17.1	24	48	150	11.3
AODS-S/E-D-72V/30A	380	5.1	36	72	30	3.4
AODS-S/E-D-72V/40A	380	6.8	36	72	40	4.5
AODS-S/E-D-72V/50A	380	8.5	36	72	50	5.6
AODS-S/E-D-72V/60A	380	10.3	36	72	60	6.8
AODS-S/E-D-72V/70A	380	12	36	72	70	7.9
AODS-S/E-D-72V/80A	380	13.7	36	72	80	9
AODS-S/E-D-72V/90A	380	15.4	36	72	90	10.1

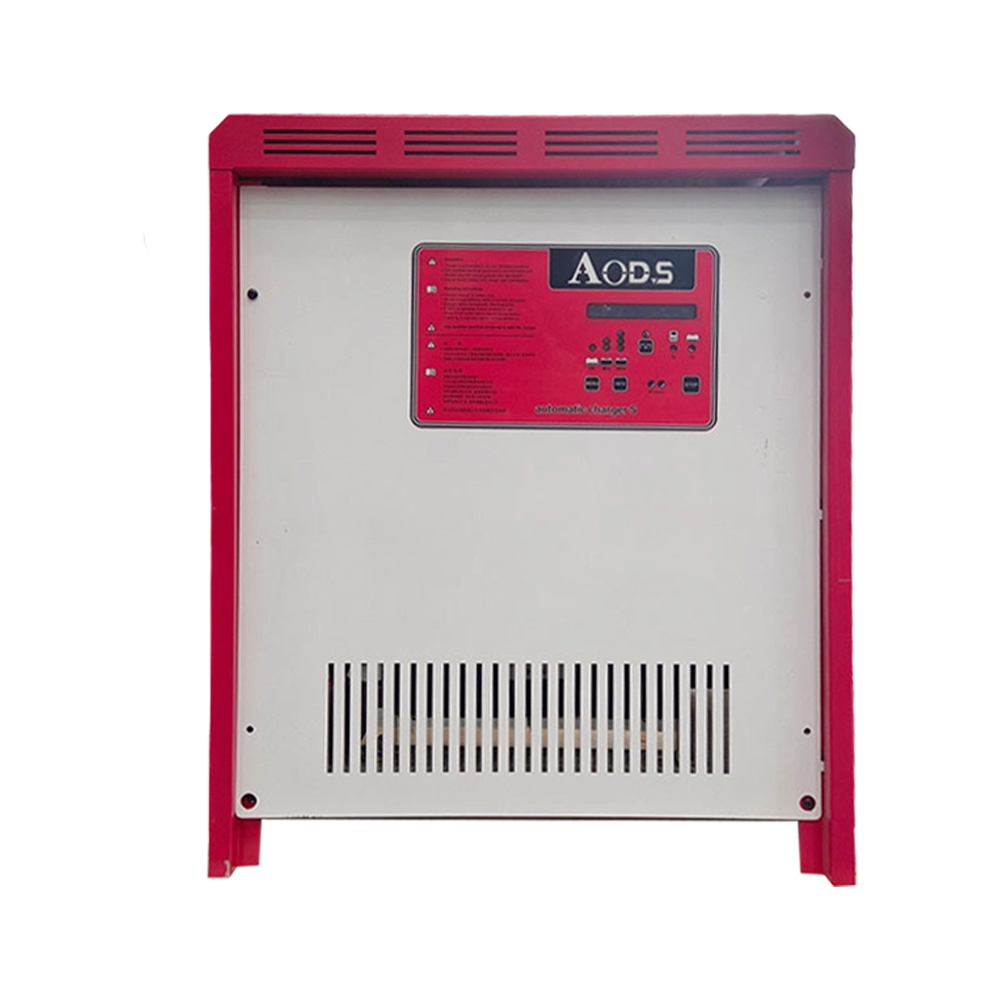

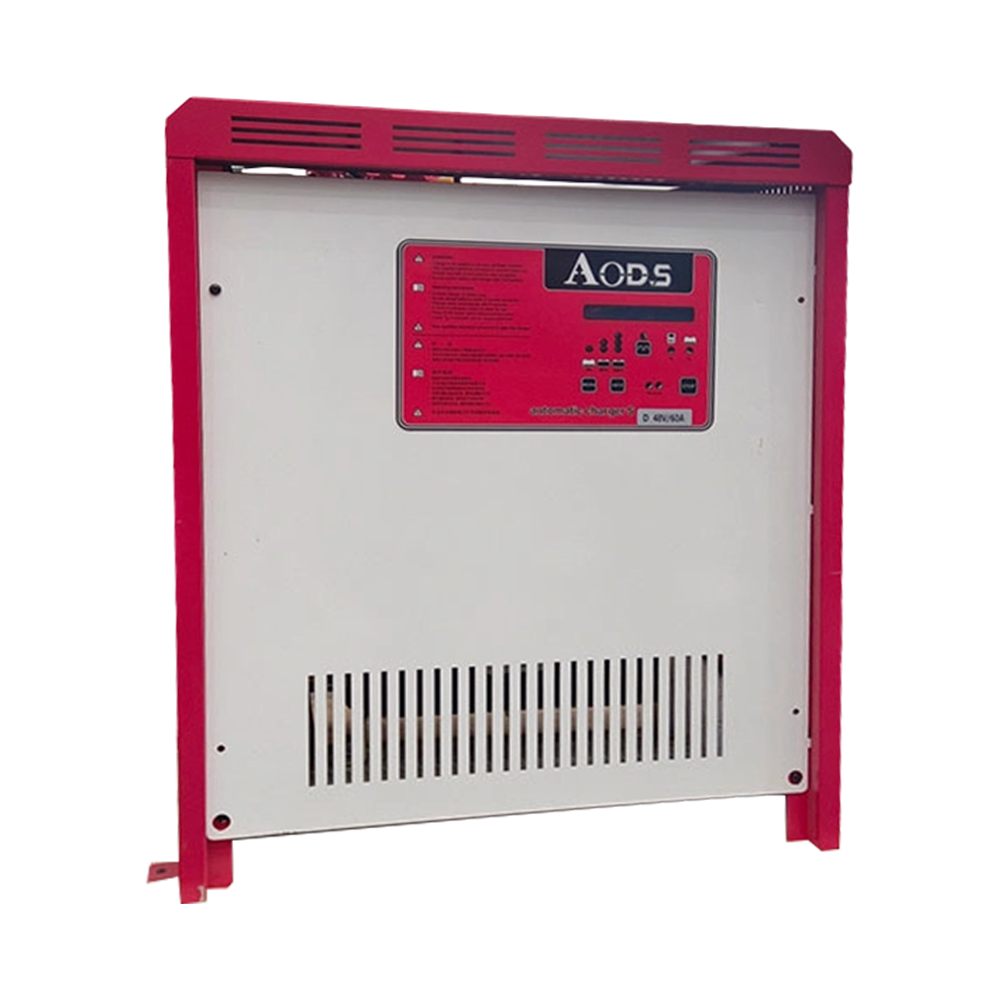

The charger is simple to operate,and has full-featured LCD and LED displays that indicate the operation status and charge process

Product Model	Input Voltage (V)	Input Current (A)	Battery cells	Battery Voltage (V)	Output Current (A)	Input Power (KW)
AODS-S/E-D-72V/100A	380	17.1	36	72	100	11.3
AODS-S/E-D-72V/110A	380	18.8	36	72	110	12.4
AODS-S/E-D-72V/120A	380	20.5	36	72	120	13.5
AODS-S/E-D-72V/150A	380	25.6	36	72	150	16.9
AODS-S/E-D-80V/30A	380	5.7	40	80	30	3.8
AODS-S/E-D-80V/40A	380	7.6	40	80	40	5
AODS-S/E-D-80V/50A	380	9.5	40	80	50	6.3
AODS-S/E-D-80V/60A	380	11.4	40	80	60	7.5
AODS-S/E-D-80V/70A	380	13.3	40	80	70	8.8
AODS-S/E-D-80V/80A	380	15.2	40	80	80	10
AODS-S/E-D-80V/90A	380	17.1	40	80	90	11.3
AODS-S/E-D-80V/100A	380	19	40	80	100	12.5
AODS-S/E-D-80V/110A	380	20.9	40	80	110	13.8
AODS-S/E-D-80V/120A	380	22.8	40	80	120	15
AODS-S/E-D-80V/130A	380	24.7	40	80	130	16.3
AODS-S/E-D-80V/150A	380	28.5	40	80	150	18.8
