Power form |
|
Electric |
|
Operation mode |
|
walking style |
|
load |
Kg |
2000 |
|
Load center distance |
mm |
600 |
|
Carrying length |
mm |
940 |
|
Wheelbase |
mm |
1200 |
|
Service weight |
Kg |
170 |
|
Axle load, before/after full load |
Kg |
697/1473 |
|
Axle load, no load front/rear |
Kg |
130/40 |
|
Tire type, drive wheel/carrier wheel |
|
polyurethane |
|
Front wheel (diameter × width) |
mm |
Ф210x70 |
|
Full forklift width |
mm |
610（695) |
|
Drive unit type |
|
DC |
|
Steering type |
|
machine |
Product Highlights
Product Features
1. PERMANENT MAGNET BRUSHLESS
Core high-efficiency power technology
48V permanent magnet brushless motor
2. ERTICAL HANDLER WORKING
Standard standing driving design, enabling flexible operation in narrow spaces
3.PERFORMANCE
Superior performance, classics redefined by classics.
Adopted high-quality, high-performance parts, fully proven and tested in the market.
Equipped with optional universal casters to deliver an excellent and stable chassis configuration.
Abandoned plastic parts; full steel body for collision resistance and superior sturdiness.

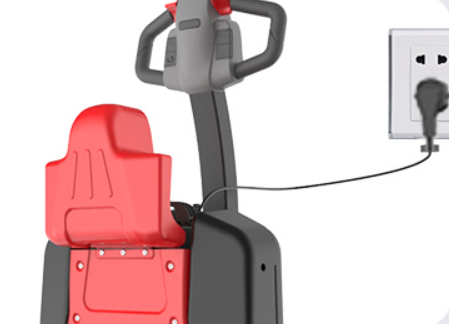

Built-in charger, enabling convenient on-demand charging and easy operation.
4. LITHIUM BATTERY
Lithium battery and built-in charger support on-the-go charging; 20AH/30AH multi-capacity batteries are interchangeable.

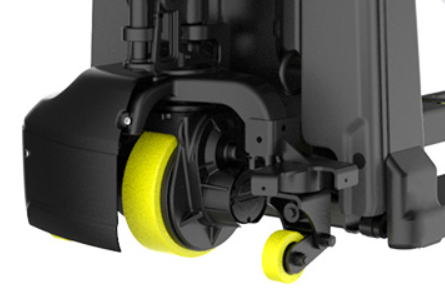

The vertical motor design facilitates direct inspection and maintenance of the motor and braking system, delivering superior serviceability compared with traditional horizontal motors.
The built-in controller self-diagnosis system displays fault codes via the handheld unit, enabling rapid troubleshooting.
Intelligent low-voltage automatic protection effectively extends the service life of the battery.
